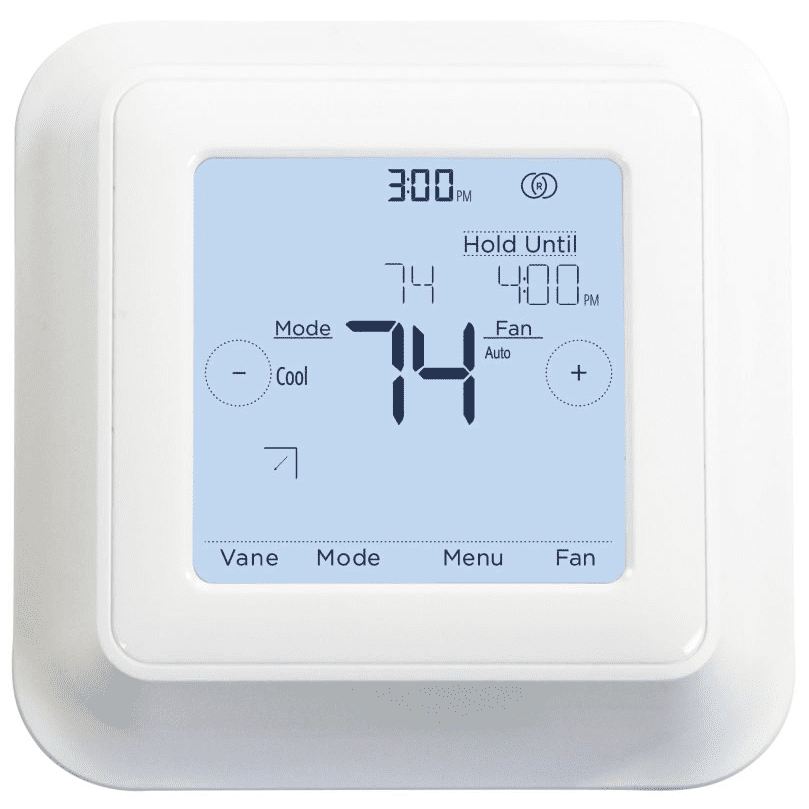

Mitsubishi MHK2 Wireless Remote Controller Kit

Mitsubishi MHK2 Wireless Remote Controller Kit

The Mitsubishi MHK2 Red-Link Wireless Thermostat is the go-to wireless wall mounted controller for most Mitsubishi mini split equipment and accessories. Easy installation and simple use are just some of the highlights for this great product.

FEATURES

Backlit, easy-to-read display
Supports both Fahrenheit and Celsius
User functions allow a user to set: – On/Off – Operation modes cool, heat, drying, fan
Set temperature (separate dual set points for heat and cool) – Fan speed setting – Airflow direction
Day/Time display with a 12-hour clock
Filter sign display
Space temperature offset adjustment
Display outside temperature and humidity (requires optional MOS1, sold separately)
Hold function
Temporary schedule override
Reset to factory default
Auto-lock display
Timer Operation: – Daily Timer: On/Off times can be set up to 4 times per day in 15-minute increments.
Weekly Timer: On/Off times can be set up to 4 times per day of the week in 15-minute increments.
Choice of 5-2 and 5-1-1 weekly schedules for heat, cool, auto (separate for each mode)
Auto-off Timer: Turns indoor unit Off at scheduled time up to 24 hours in advance
Room Temperature: Displays room temperature sensed either at the indoor unit or at the remote controller (default)
Set temperature range limits (dependent on the system connected): Cooling from 50° to 99°F Heating from 40° to 90°F Auto from 50° to 90°F with a dual temperature setting
Diagnostics: Displays and records error codes
No addressing required
Can be integrated with other RedLINK™ devices
Wiring: Connects using a five-conductor cable from MIFH1 Wireless Receiver (cable included) to the indoor unit; wireless RF from the MIFH1 Wireless Receiver to the MRCH1 Remote Controller
Dimensions: 3-9/16″ H x 5-13/16″ W x 1-1/2″ D (147 x 38 x 91mm)
Uses two “AA” alkaline batteries (included)
