Features
• 10 year warranty on parts & compressor (registration required)
• 20 year warranty on heat exchanger (registration required)
• Designed for vertical upflow, downflow & horizontal installations (see chart below)
• High-efficiency single stage scroll compressor for increased reliability
• Quiet & efficient multi-speed constant torque ECM blower motor
• Energy saving single stage gas valve
• Heavy duty aluminized steel primary heat exchanger
• Stainless steel secondary heat exchanger
• Composite condenser base pan eliminates corrosion & reduces decibel levels
• Fully insulated furnace & coil cabinet with all aluminum evaporator coil
• Condenser includes filter drier, internal thermal overload & internal pressure relief valve
• Indoor coil features a factory installed internal thermal expansion valve
• Coil drain pan constructed of high grade, heat resistant, corrosion free thermal-set material
• Filter drier included with condenser (field installation required)
• Condenser pre-charged with R410A refrigerant
• Enhanced mufflers help lower vibration energy for quieter operation
• Complies with California low NOx requirements up to 40ng/J
• Part of the new Rheem Endeavor Line Classic Series
• Convertible from natural gas to propane (LP) gas with kit
Specifications

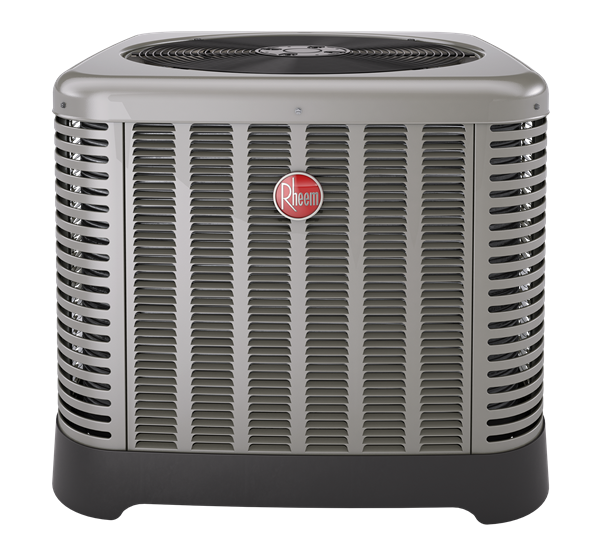

Condenser Dimensions: H27" x W33 3/4" x D33 3/4"

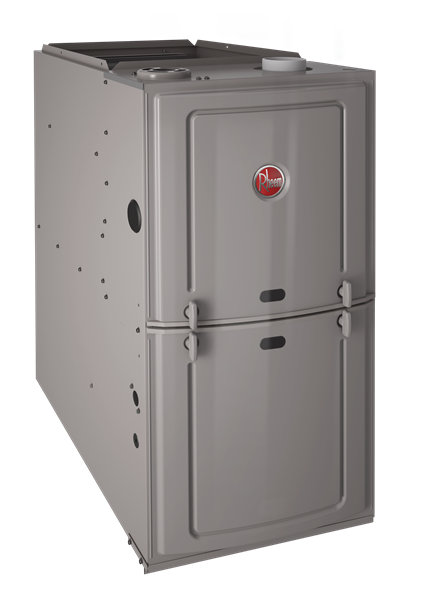

Gas Furnace Dimensions: H34" x W17 1/2" x D29 5/8"

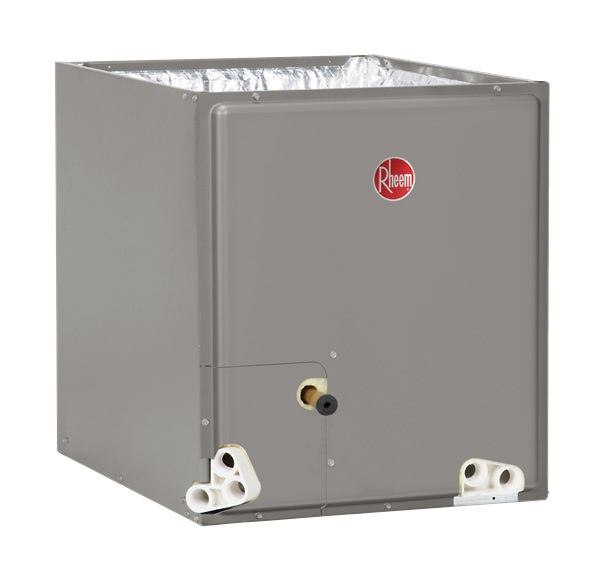

Cased Coil Dimensions: H28" x W21" x D21 11/16"
Volts (condenser): 208/240
Volts (furnace): 115
Phase: 1
Hertz: 60
EER: 11.7
Liquid Line Valve Connection: 3/8" outside diameter
Suction Line Valve Connection: 3/4" outside diameter
Condenser Specification Sheets
Gas Furnace Specification Sheets
Cased Evaporator Coil Specification Sheets
*Non-zero clearance vent conversion kit (RXGY-CK) and zero-clearance vent conversion kit (RXGY-ZK) may be needed for certain configurations. Please see chart below for details.
Additional information
| Heating Efficiency | |
|---|---|
| Indoor Unit Air Flow | Upflow (Top Discharge), Downflow (Bottom Discharge), Horizontal (Side Discharge) |
| Brand | |
| Heating Capacity | |
| Energy Star Certified | No |
| Model Number | RA14AZ30AJ1NA, R951T0703A17M4SNAS, RCFZ3621MTAAMC |
| Refrigerant | |
| Cooling Efficiency | |
| Subtitle | Electric Air Conditioning (AC) Gas Heating System, Converts to LP (Propane) Gas, (RA14AZ, R951T & RCFZ Series) |
| Cooling Capacity |
