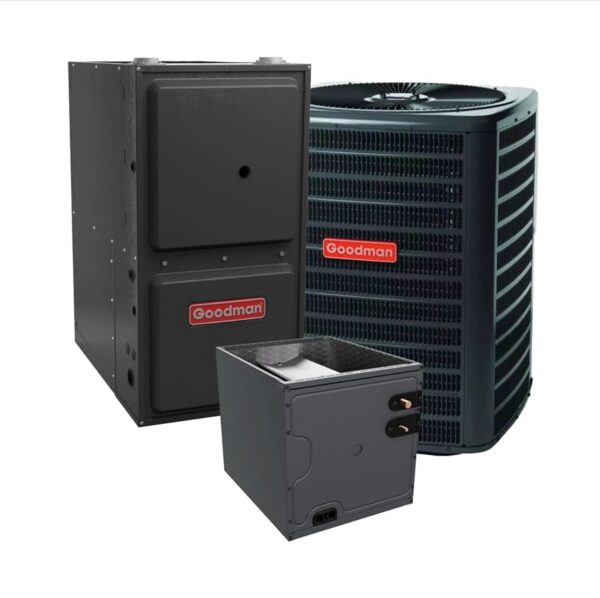

3.5 Ton Goodman 15.2 SEER2 R-32 96% AFUE 100,000 BTU Single Stage Upflow Gas Furnace Split System

FEATURES

10 Year warranty on parts & compressor
Energy efficient compressor
Multi-speed ECM Motor
Advanced Heat exchanger design
Self Diagnostic Control Board
All-Aluminum evaporator coil
Standardized copper suction tube stub length
R-32 sensor designed for the life span of the coil
Optimized for use with R-32 refrigerant including circuits and manifolds
5mm diameter copper tube/enhanced aluminum fin coil
Factory-installed filter-drier
High-pressure switch
Service valves with sweat connections
Galvanized, leather grain-embossed finish
Fully charged for 15' of tubing length

SPECIFICATIONS

Condenser Dimensions:  H35 3/4" x W35 1/2" x D35 1/2"
Furnace Dimensions:  H34 1/2" x W21" x D28 3/4"
Cased Coil Dimensions:  H30" x W21" x D21"
EER2:  12.0
Volts (condenser):  208/240
Volts (furnace):  115
Phase:  1
Hertz: 60
Liquid Line Valve Connection:  3/8" outside diameter
Suction Line Valve Connection:  7/8" outside diameter
