RHEEM

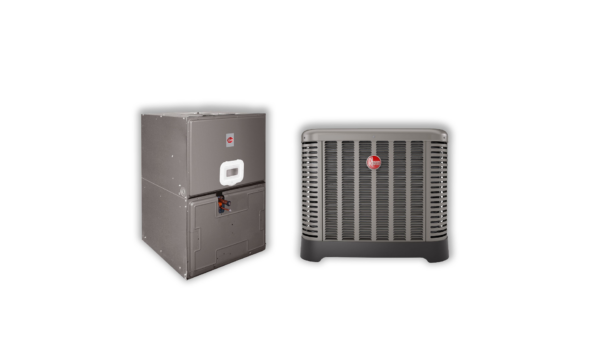

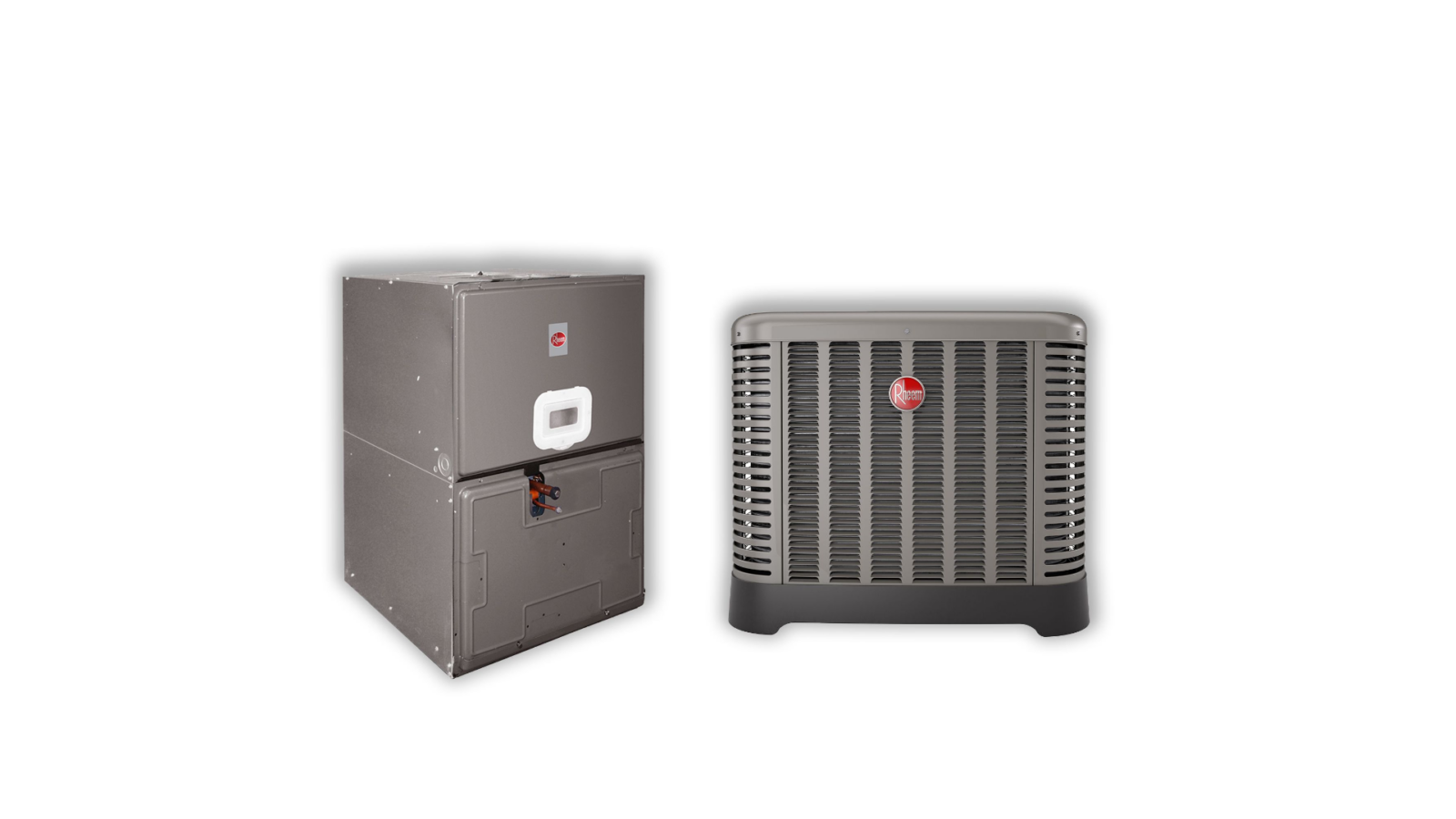

3 Ton Rheem 15.2 SEER2 R454B Two-Stage Air Conditioner Split System (35″ Tall Air Handler)
RA14AY36AJ1NALHP RB2TY3621STANMJB07
Feature
10 Year warranty Parts & Compressor
Two-Stage Scroll Compressor Two speeds (high and low) of cooling and heating, more precise temperature control, lower humidity greater efficiency
Constant CFM Motor Paired with EcoNet Smart Thermostat gradually auto-adjusts from low capacity to 100% capacity to meet comfort for ultimate humidity control, quieter sounds, energy savings
Inverted Reversing Valve Faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
Quieter OperationTwo-stage operation and variable speed airflow technology with sturdy cabinet construction
Aluminum Coil Design Constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion resistant
3 Ton Rheem 15.2 SEER2 R454B Two-Stage Air Conditioner Split System (35" Tall Air Handler)
This is NOT a Heat Pump
Features
10 year warranty on parts & compressor
Convertible design allows for up-flow, down-flow, & horizontal installations
Scroll Compressor Features greater efficiency
Quiet constant torque (ECM) indoor blower motor
Designed for Sustainability with Low GWP this will result in a 78% lower GWP than previous generation refrigerants
Refrigerant Detection System featuring the A2L sensor and mitigation board offers system protection by automatically pausing outdoor unit operation if excess refrigerant is detected
Fully insulated air handler cabinet with all aluminum evaporator coil
Enhanced mufflers help to dissipate vibration energy for quieter unit operation
Condenser includes filter drier, internal thermal overload & internal pressure relief valve
Factory installed thermal expansion valve on indoor coil
Coils tested at factory with extensive refrigerant leak check
Composite base pan dampens sound, captures louver panels, eliminates corrosion
Condenser pre-charged with R-454B refrigerant
Specifications
Condenser Dimensions: H25" x W33 3/4" x D33 3/4"

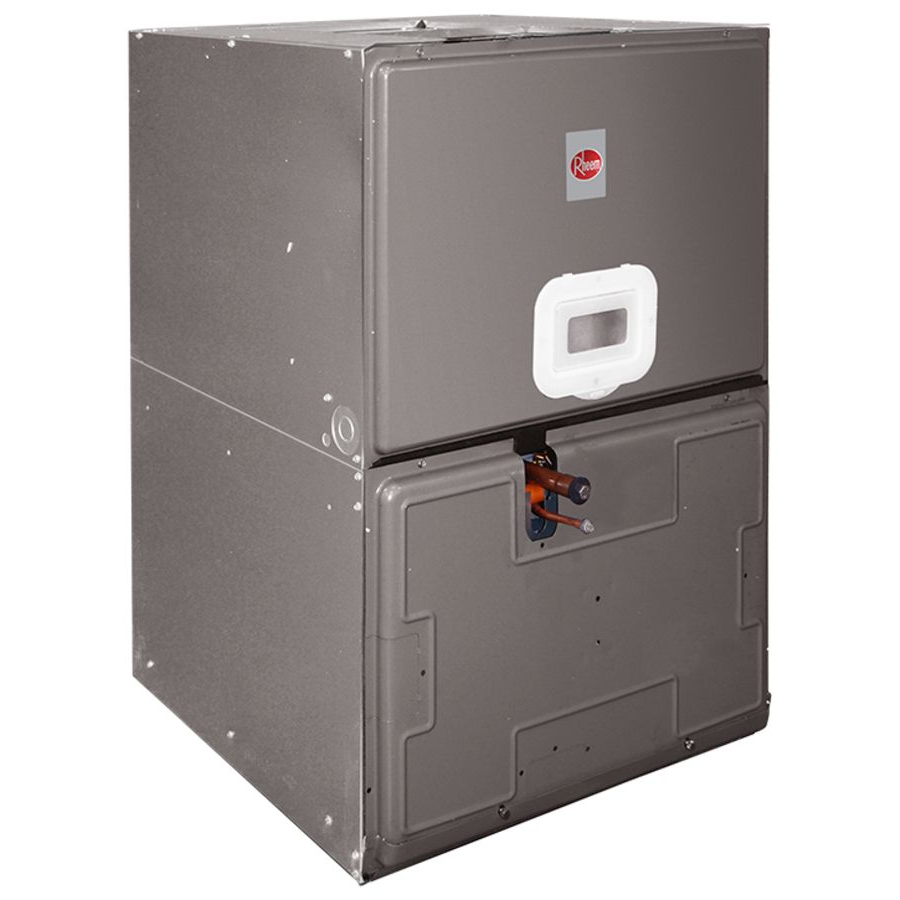

Air Handler Dimensions: H35" x W21" x D22 1/2"
Volts: 208/230
Phase: 1
Hertz: 60
EER2: 12.0
Liquid Line Valve Connection: 3/8" outside diameter
Suction Line Valve Connection: 3/4" outside diameter
Condenser Specification Sheets
Air Handler Specification Sheets
Additional information
| Indoor Unit Air Flow | Upflow (Top Discharge), Downflow (Bottom Discharge), Horizontal (Side Discharge) |
|---|---|
| Brand | |
| Energy Star Certified | No |
| Model Number | RA14AZ36AJ1NA, RB2TZ3621STANMJB |
| Refrigerant | |
| Cooling Efficiency | |
| Subtitle | Electric Straight Cool Air Conditioning (AC) and Heating System (RA14AZ & RB2TZ Series) |
| Cooling Capacity |
