RHEEM

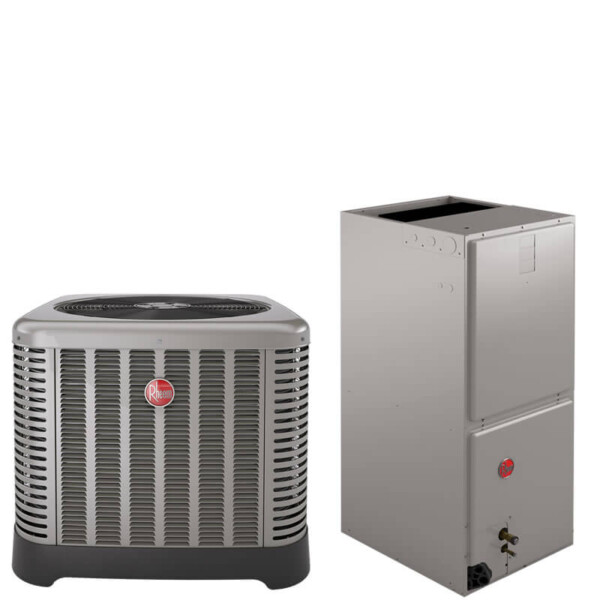

3 Ton Rheem 15.2 SEER2 R454B Two-Stage Air Conditioner Split System
RA14AY36AJ1NALHP RH2VY3617STACNJ
Feature
10 Year warranty Parts & Compressor
Two-Stage Scroll CompressorTwo speeds (high and low) of cooling and heating, more precise temperature control, lower humidity greater efficiency
Constant CFM Motor Paired with EcoNet Smart Thermostat gradually auto-adjusts from low capacity to 100% capacity to meet comfort for ultimate humidity control, quieter sounds, energy savings
Inverted Reversing Valve Faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
Quieter OperationTwo-stage operation and variable speed airflow technology with sturdy cabinet construction
Aluminum Coil Design Constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion resistant
3 Ton Rheem 15.2 SEER2 R454B Two-Stage Air Conditioner Split System
This is not a Heat Pump System
Features
10 year warranty on parts & compressor
Versatile 4-way convertible design for up-flow, down-flow, horizontal left and horizontal right applications
RH2VY features a Two-Stage Constant Torque motor (ECM) which provides enhanced SEER2 performance with most Rheem outdoor units
Two-Stage Scroll Compressor features two speeds (high/low) of cooling and heating, has more precise temperature control, and lower humidity when compared to single stage systems
Inverted Reversing Valve allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
7mm Condenser Copper Coil requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
Fully insulated air handler cabinet with all aluminum evaporator coil
Condenser includes filter drier, internal thermal overload & internal pressure relief valve
Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics
Factory installed thermal expansion valve on indoor coil
Coils tested at factory with extensive refrigerant leak check
Composite base pan dampens sound, captures louver panels, eliminates corrosion
Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE Standard 193
Outdoor unit pre-charged with R454B refrigerant
Suitable for application in mobile homes
Specifications
Condenser Dimensions: H25" x W33 3/4" x D33 3/4"

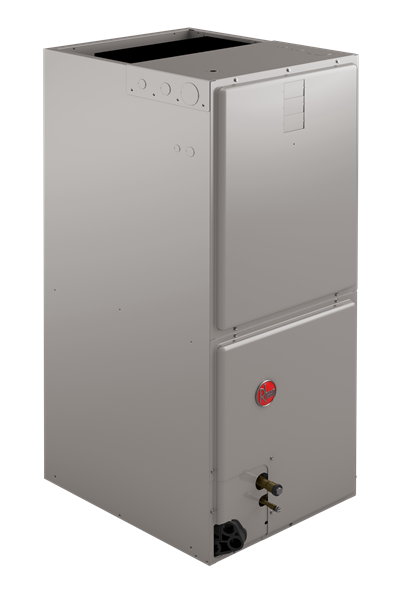

Air Handler Dimensions: H42 1/2" x W17 1/2" x D21 11/16"
Volts: 208/230
Phase: 1
Hertz: 60
SEER2: 15.2
EER2: 12
Liquid Line Valve Connection: 3/8" outside diameter
Suction Line Valve Connection: 3/4" outside diameter
Condenser Specification Sheets
Air Handler Specification Sheets
Additional information
| Indoor Unit Air Flow | Upflow (Top Discharge), Downflow (Bottom Discharge), Horizontal (Side Discharge) |
|---|---|
| Brand | |
| Energy Star Certified | No |
| Model Number | RA15AZ36AJ3CA, RH3VZ3617STACNJ |
| Refrigerant | |
| Cooling Efficiency | |
| Subtitle | Electric Straight Cool Air Conditioning (AC) and Heating System (RA15AZ & RH3VZ Series) |
| Cooling Capacity |
