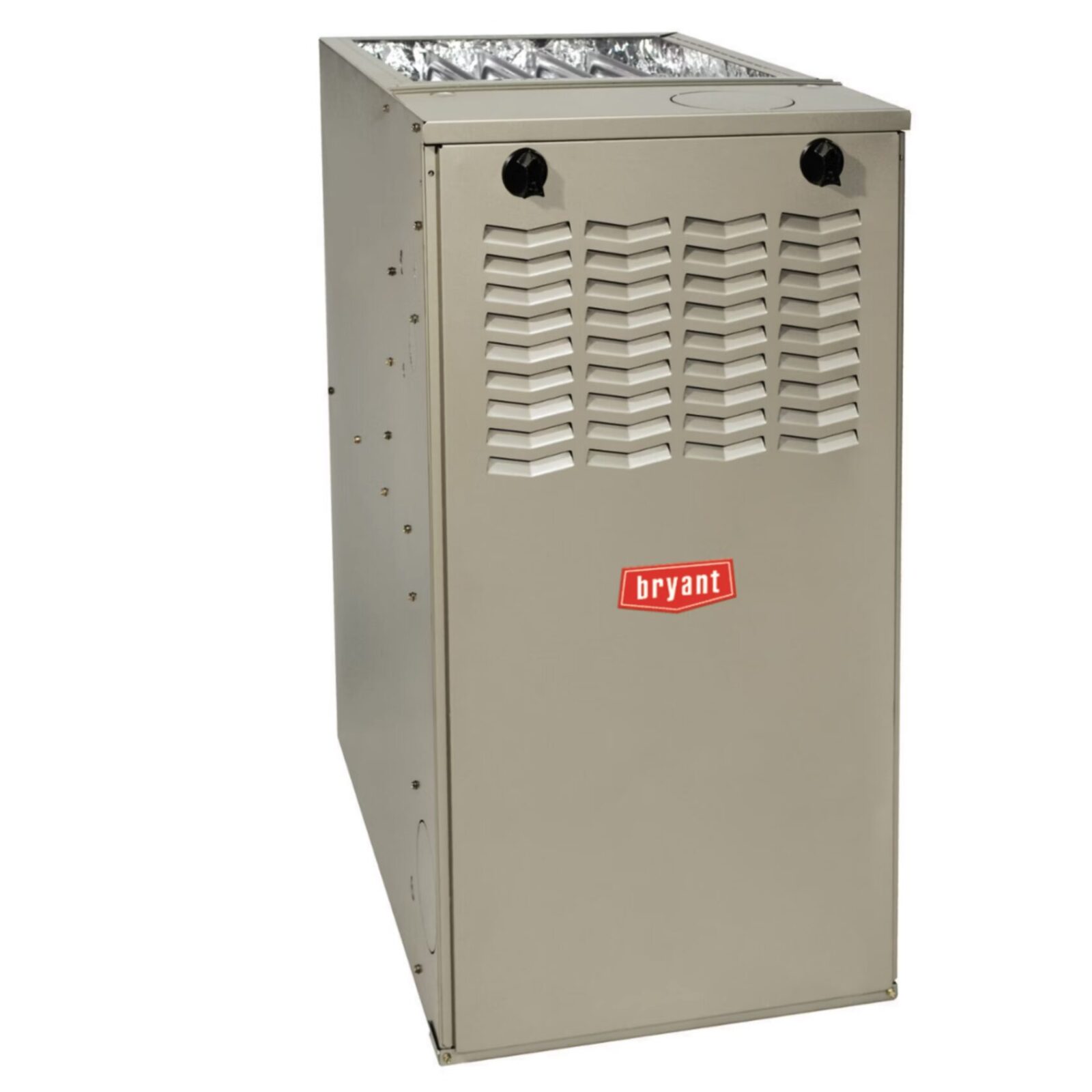

Bryant 80% AFUE 45,000 BTU Single Stage Multi-Position Gas Furnace 14″ Wide

Bryant 80% AFUE 45,000 BTU Single Stage Multi-Position Gas Furnace 14" Wide

The 800SB/801SB Legacy Line 4-way Multipoise Gas Furnaces feature Bryant’s QuieTech noise reduction system for incredibly quiet induced draft operation. Applications are easy with 4-way multipoise design, through-the-furnace downflow venting, 13 different venting options, and designed for easy service access. An inner blower door is provided for tighter sealing in sensitive applications. Improved serviceability with the 3 digit status display and NFC enabled board allowing setup via the service tech app. The 800SB/801SB furnaces are approved for use with natural or propane gas, and the 801SB - Low NOx units are designed for California installations and can be installed in air quality management districts with a 40 ng/J NOx emissions limit.

FEATURES
10 year warranty on parts (registration required)
20 year warranty on heat exchanger (registration required)
Multi-position furnace, 13 vent applications
Single stage gas valve
Multi 18 speed, constant torque (MCT) ECM blower motor
QuieTech noise reduction system
Microprocessor based "smart" control center
Adjustable heating air temperature rise
Perfect Light igniter
Inner door for tighter sealing
Compact design 33 1/3" tall
Air purifier and humidifier connections
Propane convertible

SPECIFICATIONS
Dimensions:  H33.25" x W14.2" x D29"
Volts (furnace): 115
Phase: 1
Hertz: 60
Input: 42,000-44,000 BTU/Hr
Output: 34,000-36,000 BTU/Hr

SPECIFICATION SHEET
