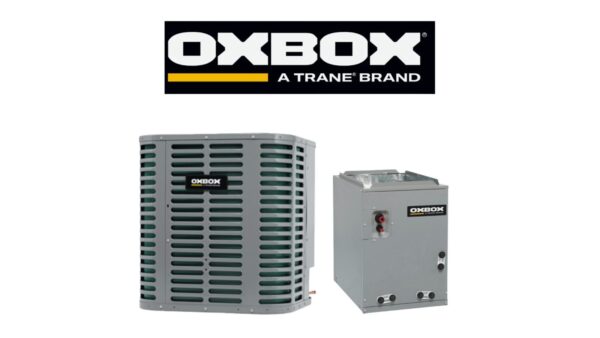

Oxbox 3 Ton 14.3 SEER2 R-410A Air Conditioner Condenser with 14.5" Wide Multi-Position Cased Evaporator Coil

The Oxbox DOE 2023 compliant line of cooling products offer you flexible and affordable options for your HVAC equipment needs.
Oxbox air conditioners have been tested to perform even in the hottest climates, with equipment that’s quiet, dependable, and affordable.

FEATURES

5 Years: Standard Parts Warranty
10 Years: Compressor Replacement
Painted, galvanized steel cabinets resist rust and stand up to weather
The compact design and small footprint are ideal for homeowners with limited yard space
Units operate quietly, with a maximum sound level of 78 decibels
24V low voltage control provides added safety
Achieves a 15.2 SEER2 rating by matching the J4AC5 outdoor unit with the high efficiency Oxbox indoor unit
Indoor Coils can be adapted to 14 & 16 SEER2 models
All aluminum coil design
Install in upflow, downflow or horizontal installations
Foil faced thermal insulation makes cleaning simple and helps reduce service time
Factory installed fixed metering device (Flow Control Check Valve - FCCV)
Some combinations require a TXV Kit sold separately

SPECIFICATIONS

Condenser Dimensions: H30" x W30 1/5" x D30 1/5"
Cased Coil Dimensions: H20" x W14.5" x D21"
Volts: 208/230
Phase: 1
Hertz: 60
Liquid Line Valve Connection: 3/8" outside diameter
Suction Line Valve Connection: 3/4" outside diameter

Condenser Specification Sheets
Cased Coil Specification Sheets
