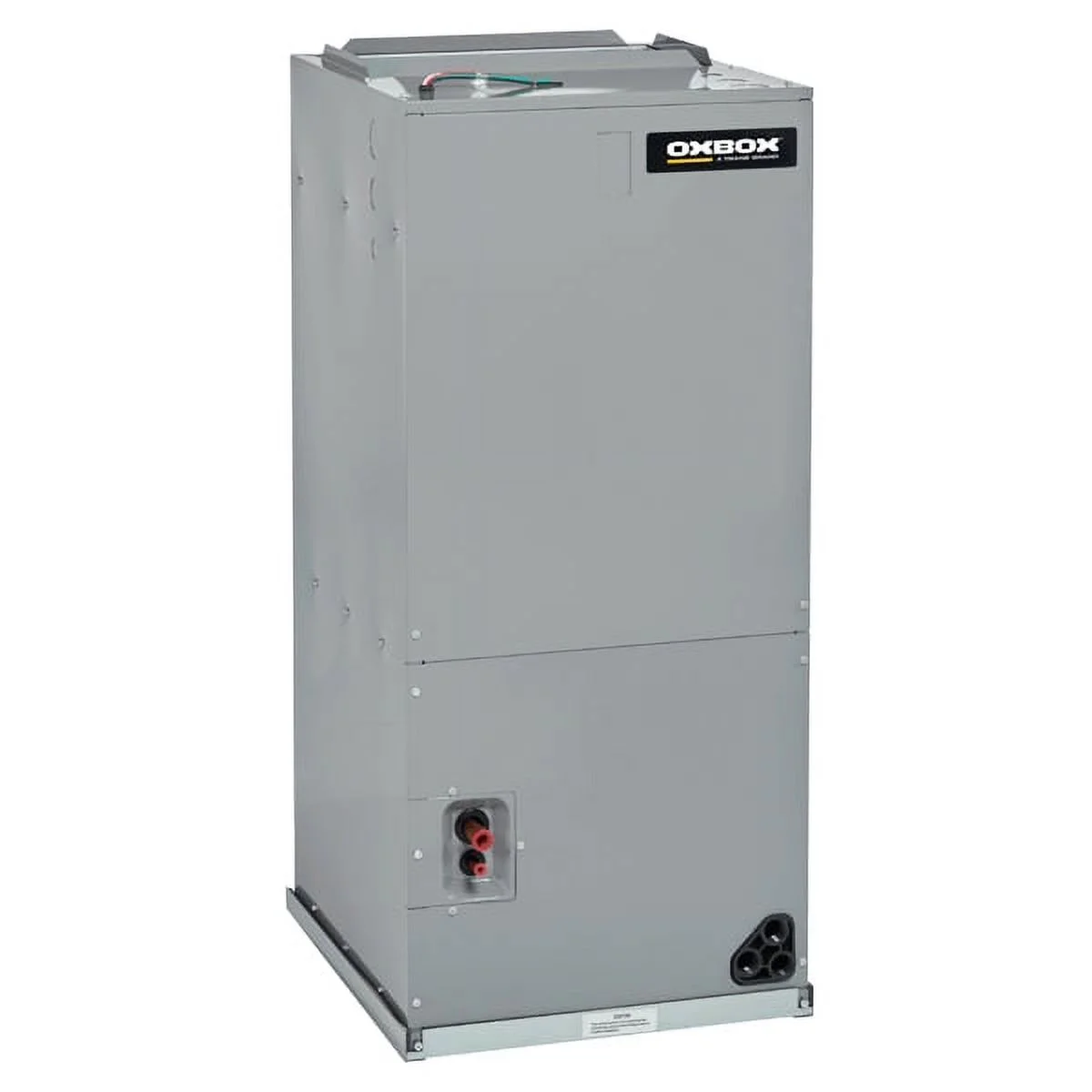

OxBox (A Trane Brand) 2 Ton Air Handler (ECM Motor) SEER2 J4AH5E24E1B00A

The OxBox (A Trane Brand) J4AH5E Air Handler offers you flexible and affordable options for your HVAC equipment needs.
Your air handler’s job is to circulate warm or cool air through your home year-round and that’s a task Oxbox handles with ease.
Our air handlers are designed with multiple installation configurations, giving you a variety of options to fit any existing space.

FEATURES

5 Years: Standard Parts Warranty 7 Years: Compressor Replacement
Warranty Features: 1 Year: Unit Replacement (ONLY COMPRESSORS, COILS, OR HEAT EXCHANGER FAILURE)
Unique Cabinet Design Metal shell and glass cotton thermal insulation layer
Multi-Position UP/Down Flow Horizontal Left /Right
Braze in Refrigerant Connection
Primary/Secondary Condensate Connections
Blower with Integrated Slide Deck for Easy Removal
Inner-groove aluminum tube and high-efficiency aluminum fin Coil with Integrated Slide Deck for Easy Removal
ECM 5 Speed Motor
High Efficiency
Integrated Horizontal Drain pans and metal Vertical Drain
Fused 24V Power Suitable for Manufactured/Mobile Home Use

SPECIFICATIONS

Dimensions:  H41 3/8" x W18 1/8" x D20 1/2"
Volts:  208/230
Phase:  1
Hertz: 60
Liquid Line Size:  3/8" outside diameter
Suction Line Size:  3/4" outside diameter

Specification Sheet
