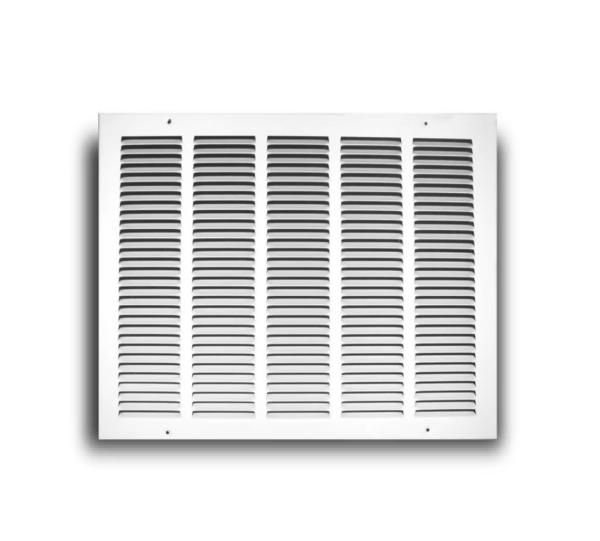

TRUAIRE 24X10 Ceiling Grill Stamped Return 0.5 in Blade Spacing White 17024X10

The TRUaire 17024X10 is a stamped-steel return air grille built for standard 24″ x 10″ wall or ceiling openings. Fixed 1/2″ stamped louvers at a 30° pitch keep return airflow moving with low restriction, which helps the system pull air back without extra noise or static. Heavy-gauge steel with a pristine white powder-coat finish stands up to everyday use and blends with most interiors. Countersunk screw holes and included #8 x 2″ mounting screws give a flush, clean install so the face sits tight to the wall or ceiling instead of sitting proud. No damper and no moving parts—just a durable 1-way return grille for residential sidewall or ceiling use.

Dimensions

• Nominal / duct opening: 24″ x 10″
• Overall face: 25-3/4″ x 11-3/4″
• Depth / thickness: 1/4″
• Fin spacing: 1/2″
• Fin angle: 30°
• Material / finish: Steel, pristine white powder coat
• Mounting: Surface mount, 2 countersunk screw holes, #8 x 2″ hardware included
• Application: Ceiling or sidewall return (1-way)

Louver direction
1-way stamped louvers run parallel to the 24″ dimension (the long side). Blades span the 24″ length and are stacked across the 10″ height, set at a fixed 30° pitch. On a typical wall install that means the louvers run left-to-right when the grille is mounted 24″ wide by 10″ tall.
